Compact Flash board

Status: PCB tested and working

Design files: Gitlab

Download schematic

Download gerber files

View Bill of Materials

Download Bill of Materials

Compact Flash interface card

This is a compact flash memory interface card to allow the Planck 6502 to save and restore data to mass storage.

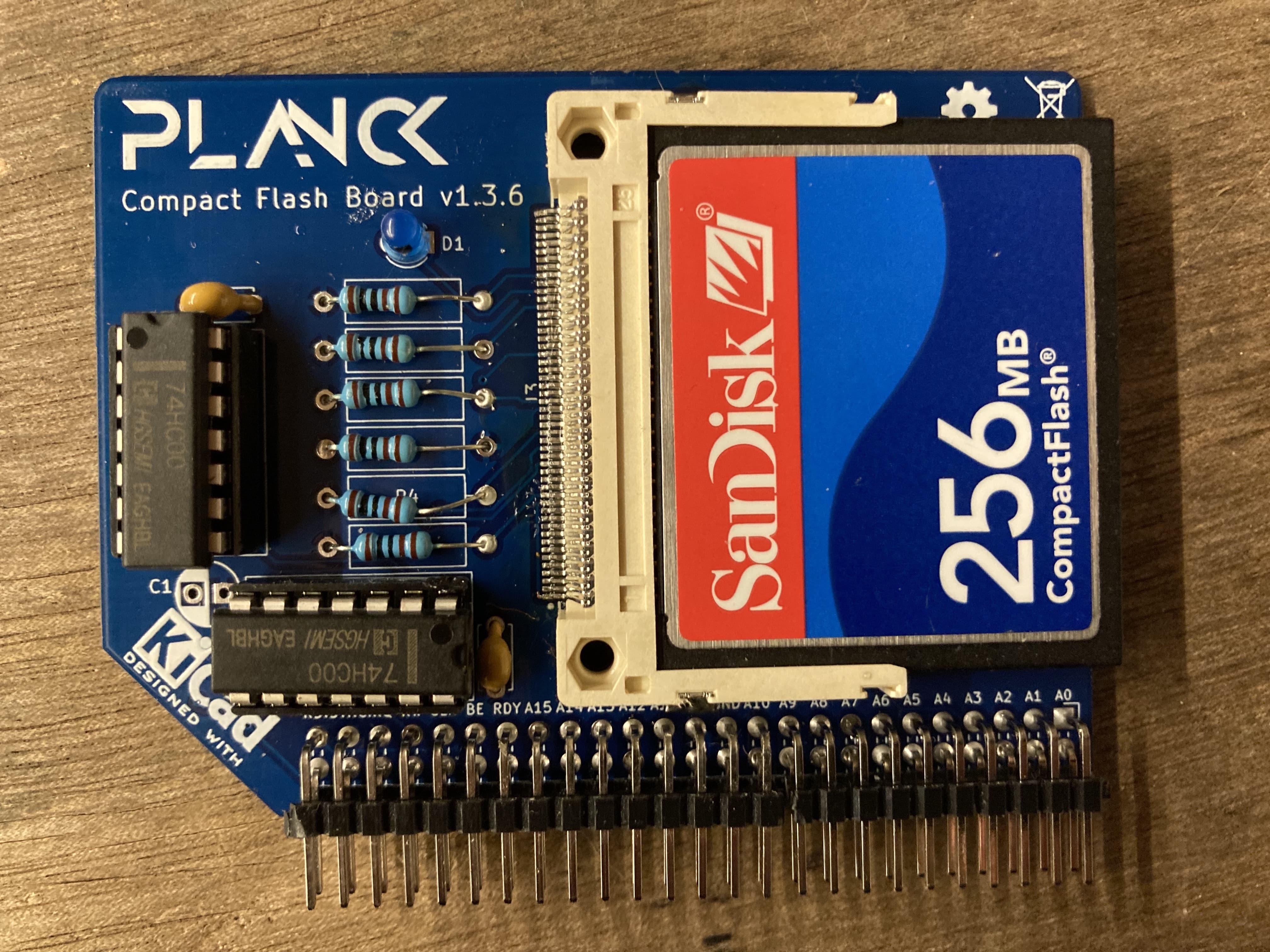

Top view of the CompactFlash board

TaliForth works with raw block storage on the CompactFlash card. A block is 1024 bytes. To read the contents of a block, type {numblock} list where {numblock} is the number of the block to read, so for example 0 list to show the contents of block 0, or 1000 list to show the contents of block 1000.

Read the Taliforth documentation to know more.

Warning

Building this card is a difficult endeavour due to the fine pitch of the CompactFlash socket.

3D View

Slot placement

SLOT 5 ($FFD0)
