Planck 6502 hardware

The Planck hardware is organized around a motherboard that hosts the CPU and RAM, ROM and serial input / output as well as clock generation, board connection, expansion slot activation and basic user IO.

The computer

Design files

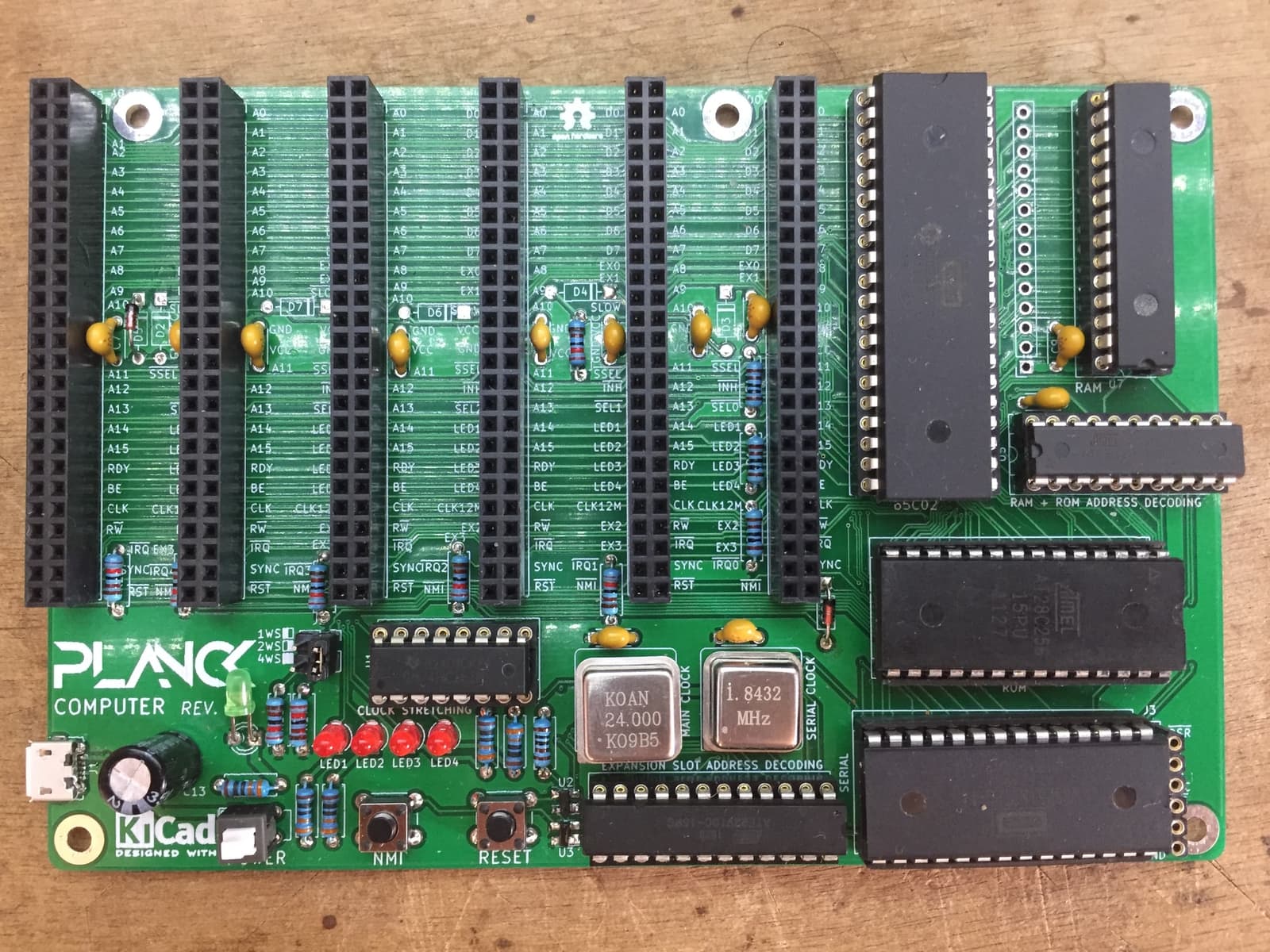

The computer board consists of a 65C02 CPU, 32K of RAM, 32K of ROM, a 6551 ACIA for serial communication, 6 expansion slots for addon boards, as well as the following:

Clock generation

The clock generation starts with an oscillator. This oscillator should be at twice the target frequency since it is divided by two by a 74HC161 binary counter

This counter makes possible the clock stretching that will be required by slow peripherals, or indeed any ROM if you run your computer fast enough.

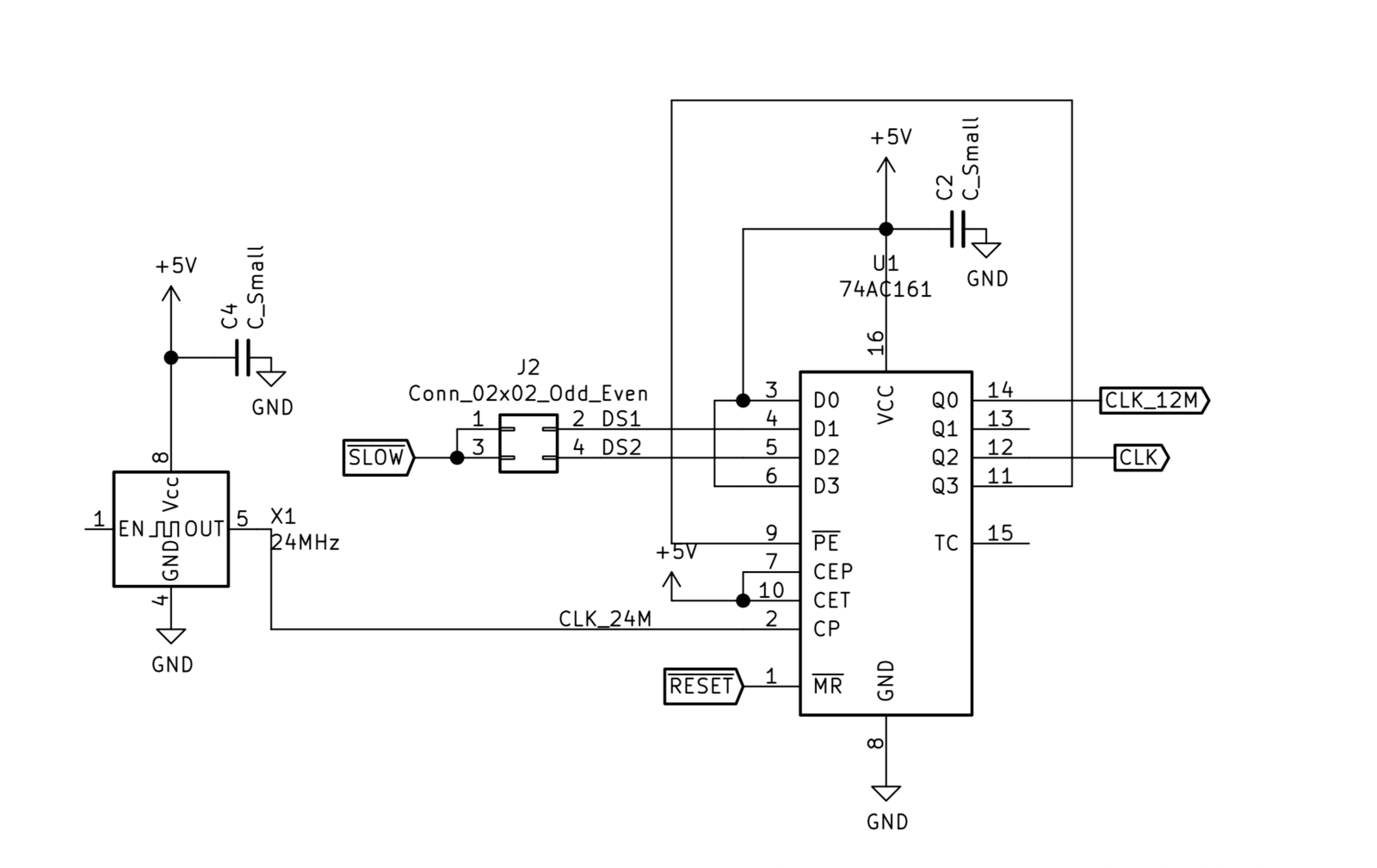

Let me explain this schematic: The 24Mhz output from the oscillator goes to the clock input of the binary counter. The Q0 output of the counter changes at every positive clock edge, so it is a square wave of half the frequency of the oscillator clock. This signal is fed to the expansion bus under the name CLK_12M. It is thus a non stretched clock that is used for things that require precise and consistent timings, such as VIA timers for example. Q3 is low when the counter is less than 8 and causes the counter to load its current count from the input. By default if the SLOW signal is high, then the counter will immediately load 15 and resume counting, which will take it back to zero, which will trigger the load again.

It that case the counter oscillates between 15 (all outputs high) and 0 (all outputs low) which causes CLK and CLK_12M to oscillate at the same frequency.

However, if the SLOW signal is asserted (low) than a number less than 15 will be loaded in the counter, which means the Q2 (CLK signal) will toggle at a reduced frequency.

So this simple circuit generates two clock signals : one that is slow enough for the currently addressed peripheral, and one that is stable for timing sensitive peripherals. This also means that any timing sensitive peripherals MUST be able to run at the main (CLK_12M) frequency.

Board connection

One of the purposes of the motherboard is to connect all daughter boards together. It does this by means of an extension bus connector based on a 2.54mm 2x25 pins socket. These connectors are cheap, reliable and easy to obtain. The female connector is placed on the backplane and a right angle male connector on each expansion board.

Most pins on this extension consist of the 65C02 signals, such as 16 address lines, 8 data lines, and a smattering of control lines. The complete bus pinout is detailed below:

Pin number	Pin name	Description
1	A0	Processor address bus pin 0
2	D0	Processor data bus pin 0
3	A1	Processor address bus pin 1
4	D1	Processor data bus pin 1
5	A2	Processor address bus pin 2
6	D2	Processor data bus pin 2
7	A3	Processor address bus pin 3
8	D3	Processor data bus pin 3
9	A4	Processor address bus pin 4
10	D4	Processor data bus pin 4
11	A5	Processor address bus pin 5
12	D5	Processor data bus pin 5
13	A6	Processor address bus pin 6
14	D6	Processor data bus pin 6
15	A7	Processor address bus pin 7
16	D7	Processor data bus pin 7
17	A8	Processor address bus pin 8
18	EX0	Extra pin for future use or for communication between expansion cards
19	A9	Processor address bus pin 9
20	EX1	Extra pin for future use or for communication between expansion cards
21	A10	Processor address bus pin 10
22	SLOW	Used by slow peripherals to request a slower clock speed, active low.
23	GND	Ground
24	+5V	Positive voltage
25	+5V	Positive voltage
26	GND	Ground
27	A11	Processor address bus pin 11
28	SSEL	An expansion card is selected. Used by the processor card to disable it’s built-in ram and ROM, active low
29	A12	Processor address bus pin 12
30	INH	When this is active (low), processor card RAM and ROM are disabled
31	A13	Processor address bus pin 13
32	SLOT_SEL	Used by the backplane to signal to expansion cards when they should activate, active low
33	A14	Processor address bus pin 14
34	LED1	Connected to one of the backplane LEDs
35	A15	Processor address bus pin 15
36	LED2	Connected to one of the backplane LEDs
37	RDY	Processor I/O pin. When low, the processor waits in its curent state
38	LED3	Connected to one of the backplane LEDs
39	BE	Processor input pin. when low the processor releases the bus
40	LED4	Connected to one of the backplane LEDs
41	CLK	Main computer clock. Can be stretched or not depending on the state of the SLOW signal.
42	CLK_12M	Stable clock for e.g. VIA timers.
43	RW	CPU read / write pin
44	EX2	Extra signal 2.
45	IRQ	This goes low when an interrupt request has occured, active low
46	EX3	Extra signal 3.
47	SYNC	CPU output. Indicates when the CPU is fetching an opcode
48	SLOT_IRQ	Used by expansion cards to signal an interrupt request to the processor, active low
49	RESET	Reset signal trigered by the button on the backplane, active low
50	NMI	non maskable interrupt signal trigered by the button on the backplane, active low

View the pinout on pinoutguide.com

Expansion slot activation

The 65C02 CPU works with memory mapped input/output. This means that the CPU does not care what device is responding to what address range. To it, when it asks for data from a certain address, it’s all the same whether that data comes from RAM, ROM, a temperature sensor or whetever else. This means that we need some external logic to activate certain devices when the CPU requests data from an address where we want that device to take control.

In our case, the motherboard has some logic that tells one of the expansion slots to activate when a certain address range is requested by the CPU. This address decoding, as it is called is taken care of by an ATF22V10, a programmable logic chip that can be thought of as an ancestor to FPGAs.

This functionality could also be built from discrete logic chips, but using a PLD chip does three things for us:

• First it saves board space. The functionality this single chip provides would need at least two or three chips to replicate with discrete logic
• Secondly, it speeds up the response time. Each time a signal passes through a chip, it incurs a slight delay. So the fewer chips are on the path, the faster our computer can run.
• Finally, it allows us to reprogram it to easily change the memory map of the system.

In the default case, slot 0 responds in the address range $FF80 to $FF8F, slot 1 to $FF90 to $FF9F, etc until slot 5 at $FFD0 to $FFDF. This address decoding can be reconfigured by simply reprogramming the PLD, giving quite a lot of flexibility to the system.

You could for example assign a whole page (256 bytes) or more to each expansion slot, allowing the extension cards to have their driver in an on-board ROM.

Here is the default expansion memory map in table form

START ADDRESS	END ADDRESS	DESCRIPTION
0xFF80	0xFF8F	SLOT0 Selected
0xFF90	0xFF9F	SLOT1 Selected
0xFFA0	0xFFAF	SLOT2 Selected
0xFFB0	0xFFBF	SLOT3 Selected
0xFFC0	0xFFCF	SLOT4 Selected
0xFFD0	0xFFDF	SLOT5 Selected
0xFFE0	0xFFEF	SERIAL Selected

Basic user IO

The computer provides some basic user input and output in the form of two buttons and 4 leds.

The two buttons are a reset button and an NMI (non maskable interrupt) buttons. The reset button triggers a hard reset of the processor, whereas the NMI button provides a non maskable interrupt to the code that can be handled (for example) as a soft reset.

The 4 LEDs are connected to pins on the expansion bus, and can thus be driven by any card that wants to signal something to the user. You have to be mindful in your code not to drive a led low while another card is trying to drive it high, as that would cause high current to flow into / from your peripherals.

Finally, there is a power plug (Barrel jack), a power switch and a power LED.

If you want to build this computer, please see the building the computer page to get more details about what to expect. <!–

–>
