Make your own Planck 6502 board

Status: PCB tested and working

Design files: Gitlab

To create your own Planck 6502 expansion board, you can use the provided expansion board template (see Design files above)

This Kicad project provides a base schematic and board layout for you start designing your own board.

Planck extension board template

Of course, you can also create an extension card using some prototype board and a 2x25 pins right angle header. Actually I would strongly recommend you do that before having your PCB fabricated.

Alternatively, you could also get a few prototype boards fabricated to be able to create many boards or refine designs to your heart’s content.

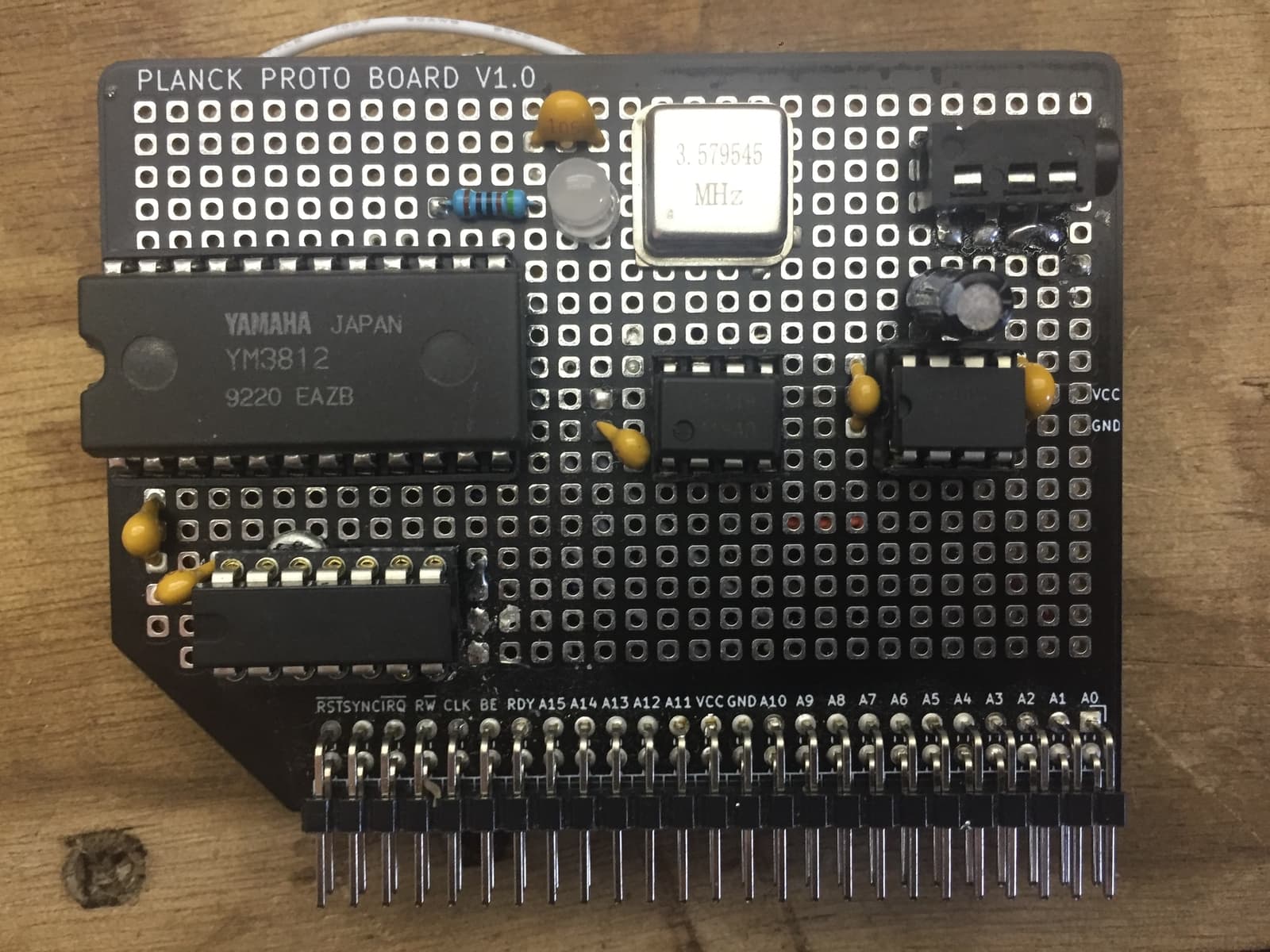

For example, here is the prototype of the OPL2 board

LCD board prototype
